NGK® Spark Plug
NGK® Spark Plug

NGK® Spark Plug

Model BR2-LM (Stock #5798)

$11.76
$11.76
SKU: BR2-LM
UPC: 087295057988

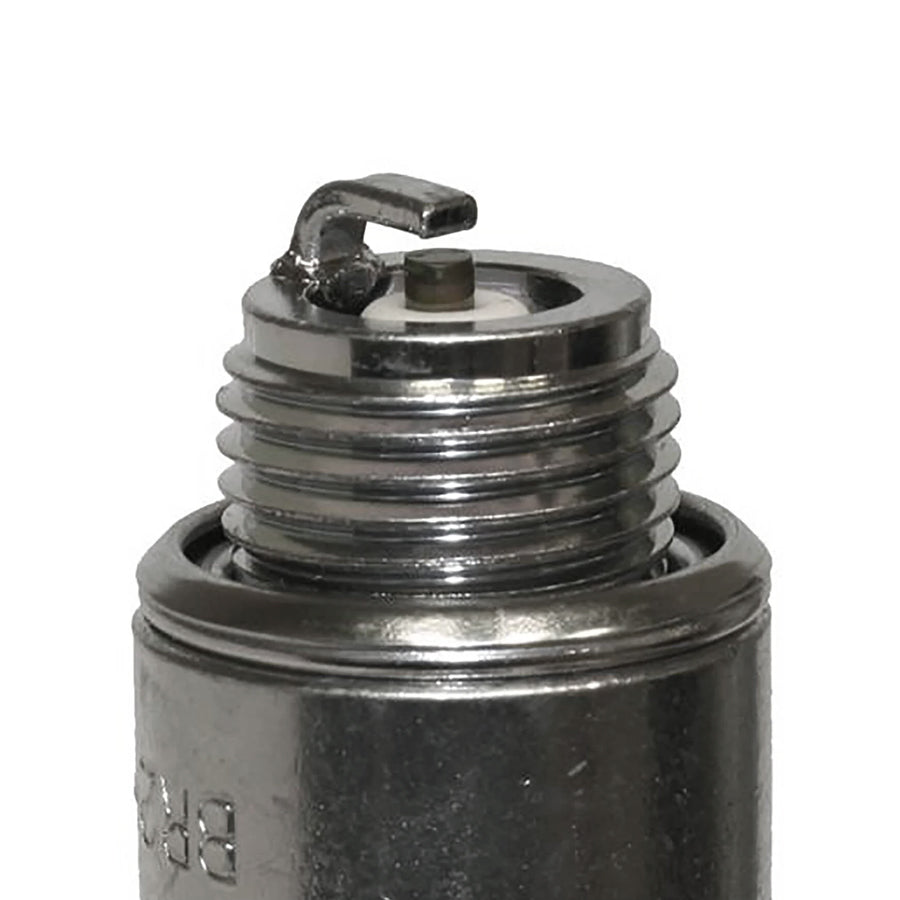

  • The NGK® BR2-LM (Stock No. 5798) is a standard copper-core and nickel-alloy spark plug designed for reliable OE performance in small engines and outdoor power equipment
  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties; corrugated ribs prevent flashover
  • Copper core aids in heat removal, and triple seal design prevents gas leakage
  • Made in Japan
Product Specification

  • Thread Size / Pitch: 14 mm thread diameter with a 1.25 mm pitch
  • Thread Reach: 3/8" (9.5 mm)
  • Hex Size: 13/16" (21 mm)
  • Gap: 0.028" (0.7 mm) preset
  • Heat Range: 2
  • Seat Type: Gasket
  • Resistor: Yes (10 kΩ approximate)
  • Electrode Material: Nickel tip with a solid copper core
  • Torque Specs: Cast Iron: 18–25.3 lb. ft. | Aluminum: 18–21.6 lb. ft
Compatibility

  • Fits Briggs & Stratton, Tecumseh, Kohler, and other small engines and outdoor power equipment
Fit Guide

  • NGK® OEM# BR2-LM (Stock No. 5798)
  • Replaces:
    Champion RJ19LM, J19LM, RJ2YLE, 868, RJ19LMC
    Autolite 58, XST458, 458DP
    Briggs & Stratton 796112S, 591868, 802592, 492167S
    Bosh WR11E0, WR12EC, 7808
